Vet I Otoscope

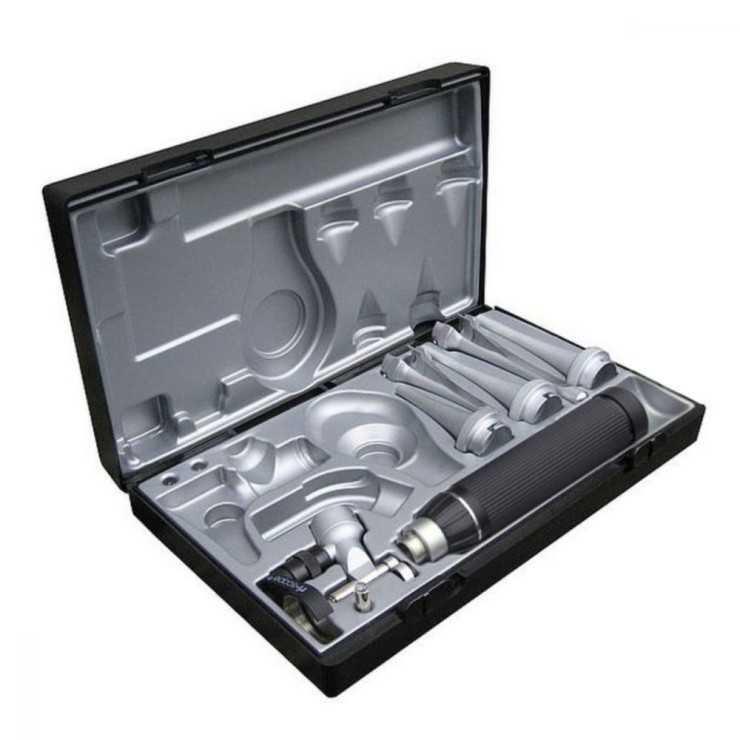

The Vet I Otoscope offers the ri-scope®
Operation otoscope set with ear specula and spare lamps in an impact-resistant
case.
Vet I Otoscope
– details
1.

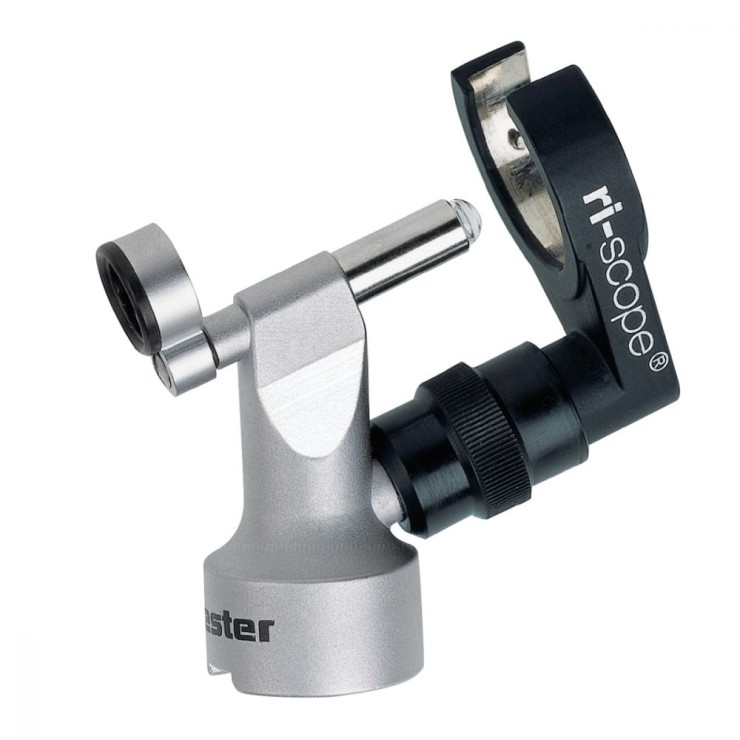

ri-scope® Operation otoscope
Veterinary head
2.
Bayonet fitting on the heads
for fast and secure attachment to the handle
3.

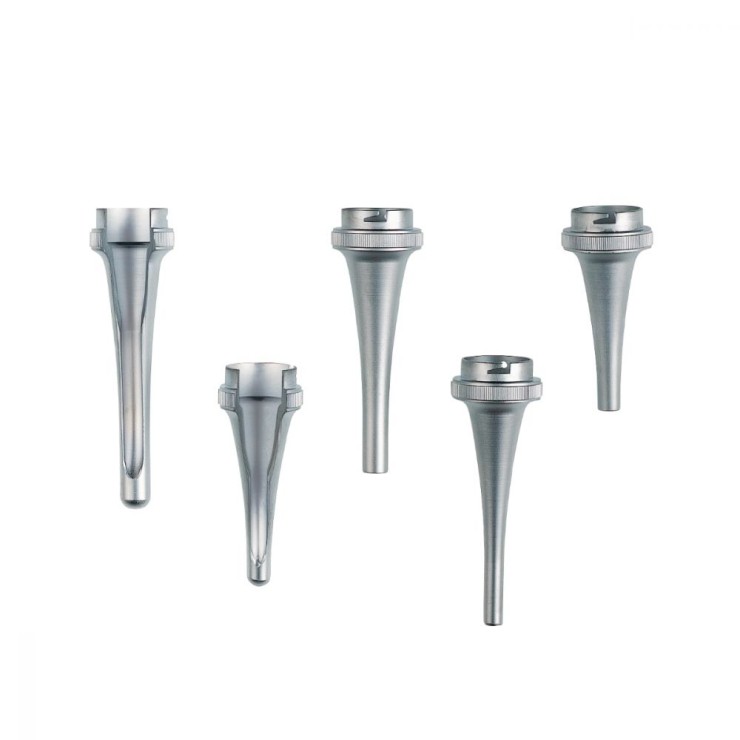

ri-scope® Operation Otoscope
Veterinary Metal Specula
a) Unslotted,
sterilisable at 134°C for 10 minutes in steam sterilizer:
l diameter 4 mm, 83 mm long
l diameter 5 mm, 62 mm long
l diameter 6 mm, 82 mm long
b) Slotted,
sterilisable at 134°C for 10 minutes in steam sterilizer:
l diameter 7.5 mm, 68 mm long
l diameter 9.4 mm, 92 mm long
4. 3
spare lamps (Xenon 3.5V lamp or Halogen 2.5V lamp)
a)
1pcs for the operation otoscope
b)
1pcs for the ophthalmoscope
c)
1pcs for the nasal or tongue

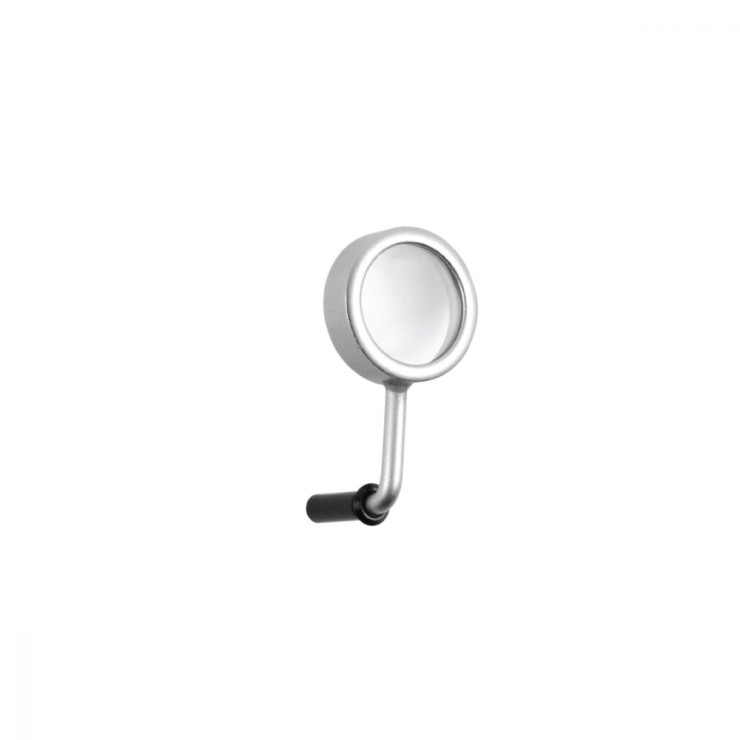

5. Swivel
lens
6. Impact-resistant
case
Otoscope
Features and Benefits
l Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp
l Swivel lens with 2.5x magnification
l Moveable, slotted speculum holder can be locked in any position
l Open design for unhindered use during examination and operation
l All-metal operation otoscope for long service life
l Reusable metal specula made of high-quality chrome-plated,
corrosion-free metal
| Dimensions | Case : 230 x 140 x 46 |
|---|---|
| Ambient temperature | 0° to +40° C |
| Relative humidity | 30% to 70% non-condensing |
| Storage/ Transport ambient temperature | -10° to +55°C |
| Storage/ Transport relative humidity | 30% to 85% non-condensing |
| Air pressure/ Transport relative humidity | 800 hPa - 1100 hPa |
| ri-scope® Operation otoscope Veterinary HL 2.5 V | 2.5 V, 680 mA, mean life span 20 h |
| ri-scope® Operation otoscope Veterinary XL 3.5 V | 3.5 V, 700 mA, mean life span 20 h |
