Vet I Oto-/Ophthalmoscope

Vet I Oto-/Ophthalmoscope

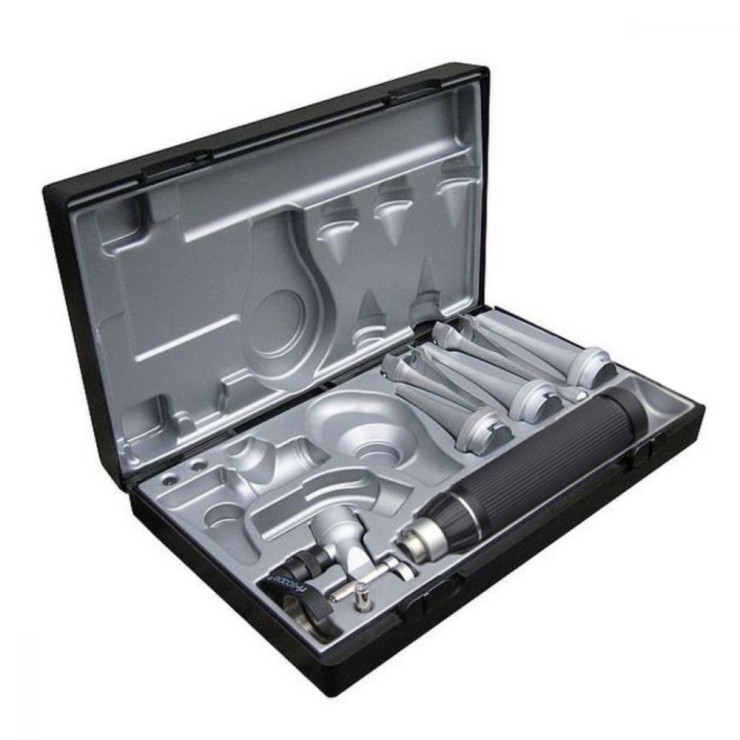

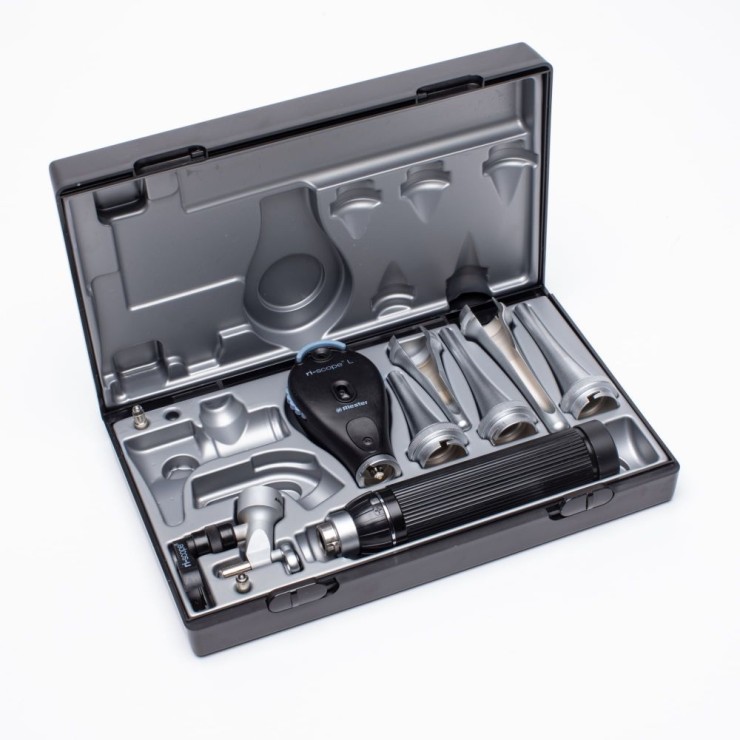

The Riester Vet I Oto-/Ophthalmoscope comes with operation otoscope, ophthalmoscope with accessories and spare lamps in impact-resistant case.

Vet I Oto-/Ophthalmoscope – details

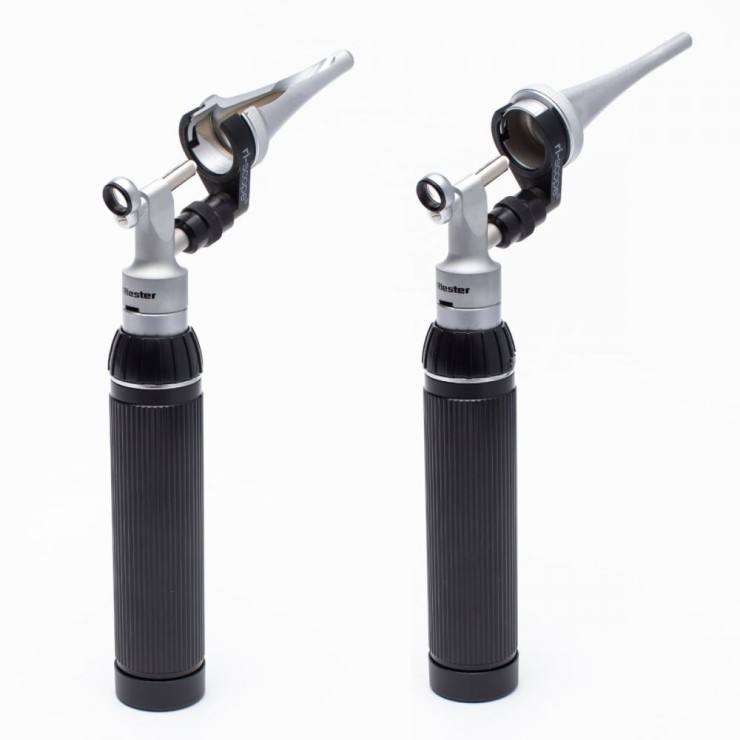

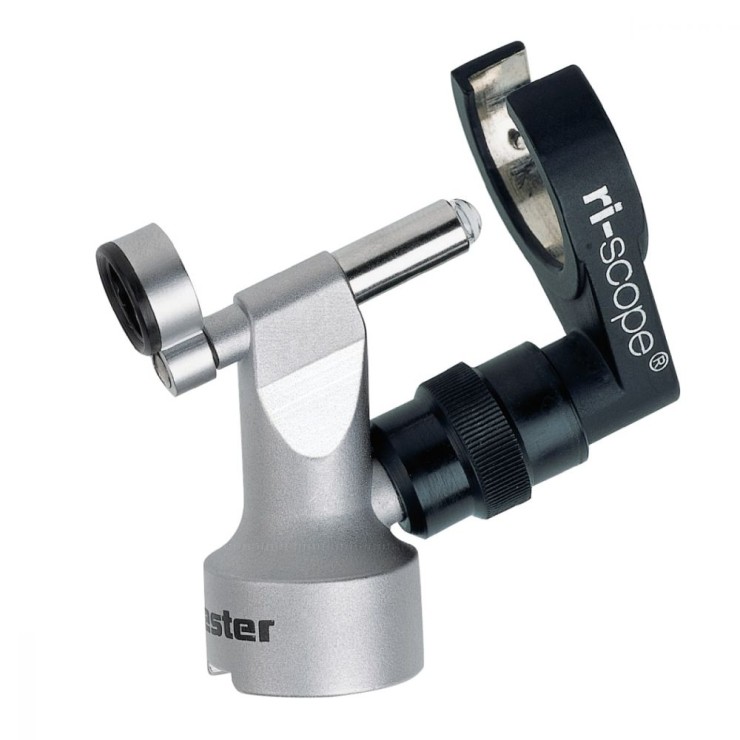

1. ri-scope® Operation otoscope Veterinary head

2. ri-scope® L1 Ophthalmoscope Head

3. Bayonet fitting on the heads for fast and secure attachment to the handle

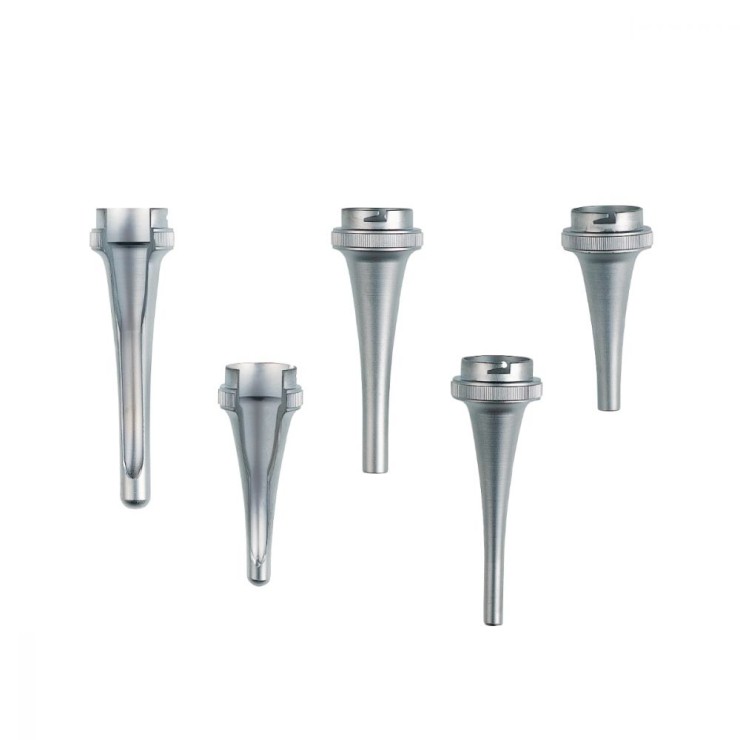

4. ri-scope® Operation Otoscope Veterinary Metal Specula

a) Unslotted, sterilisable at 134 °C for 10 minutes in steam sterilizer:

  ○ diameter 4 mm, 83 mm long

  ○ diameter 5 mm, 62 mm long

  ○ diameter 6 mm, 82 mm long

b) Slotted, sterilisable at 134 °C for 10 minutes in steam sterilizer:

  ○ diameter 7.5 mm, 68 mm long

  ○ diameter 9.4 mm, 92 mm long

5. 2 spare lamps (Xenon 3.5 V lamp or Halogen 2.5 V lamp)

a) 1pc for the operation otoscope

b) 1pc for the ophthalmoscope

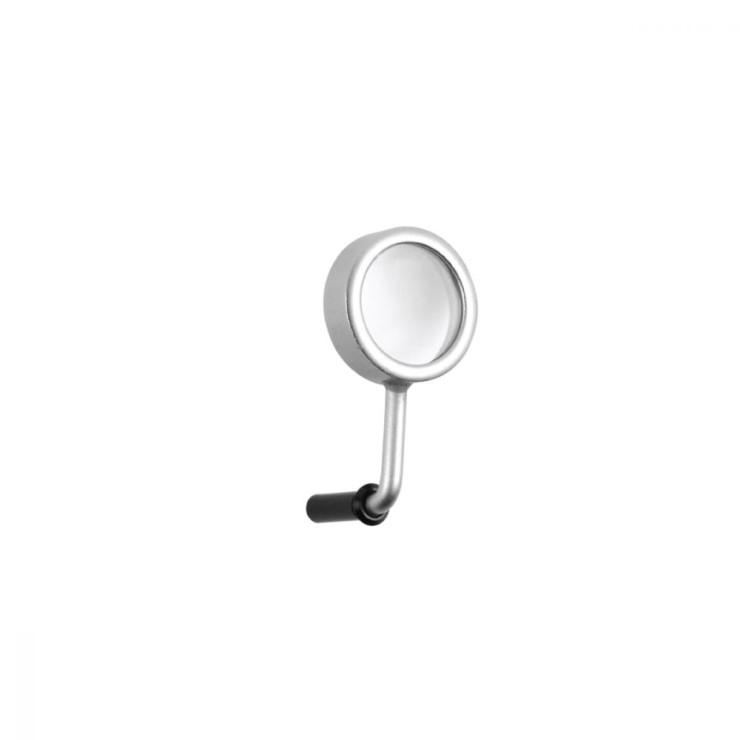

6. Swivel lens

7. Impact-resistant case

Otoscope Features and Benefits

l   Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp

l   Swivel lens with 2.5x magnification

l   Moveable, slotted speculum holder can be locked in any position

l   Open design for unhindered use during examination and operation

l   All-metal operation otoscope for long service life

l   Reusable metal specula made of high-quality chrome-plated, corrosion-free metal

Ophthalmoscope Features and Benefits

All Ophthalmoscopes Features:

l   Optimized high-performance optics with aspherical condenser lens

l   Parallel beam path

l   Dust-proof lenses

l   Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations

L1 Features:

l   Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35

l   Easy-to-operate aperture hand-wheel with semi-circle, Small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect.

l   Includes filter wheel engageable for all apertures with symbol display, red-free filter.
