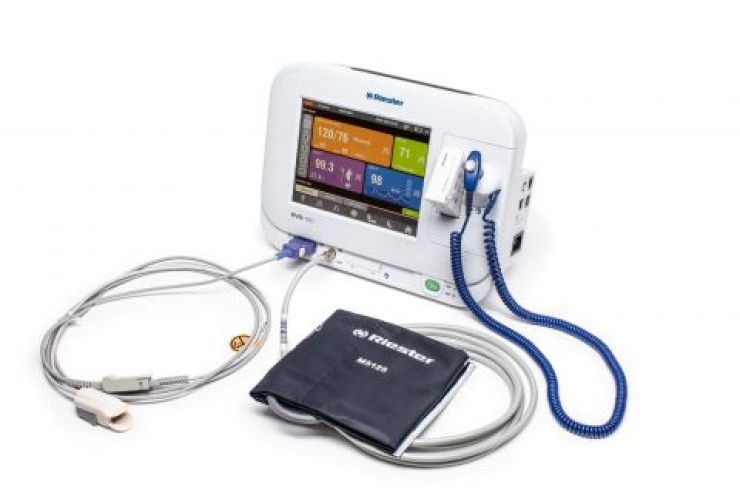

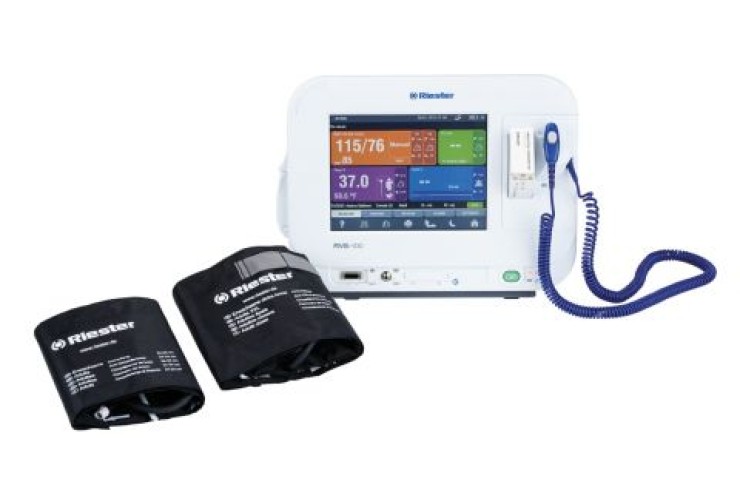

RVS-100 is a versatile, intuitive touch screen vital signs monitor which measures pulse rate (PR), oxygen saturation (SpO2), non-invasive blood pressure (NIBP) and temperature (oral/axillary probe). The flexible, modular design offers many configurations and settings to suit the needs of hospitals and clinics as well as office based and long-term care settings.
Features and
benefits
Hardware

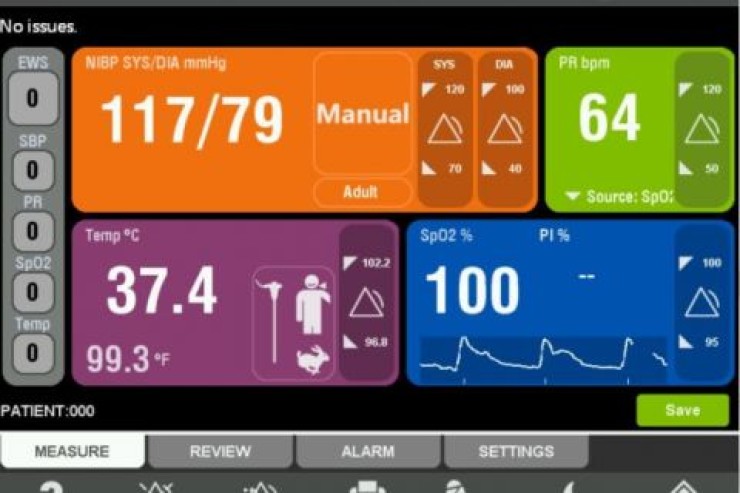

lLarge 8“ full HD colour TFT-LCD screen displays large numbers and
bright colour-coded parameters so that vital signs can be seen clearly and
interpreted easily.
lScreen is visible in both dark and lit rooms.
lThe touch screen and intuitive user interface makes it quick and
easy for patient information to be entered and settings amended as required.

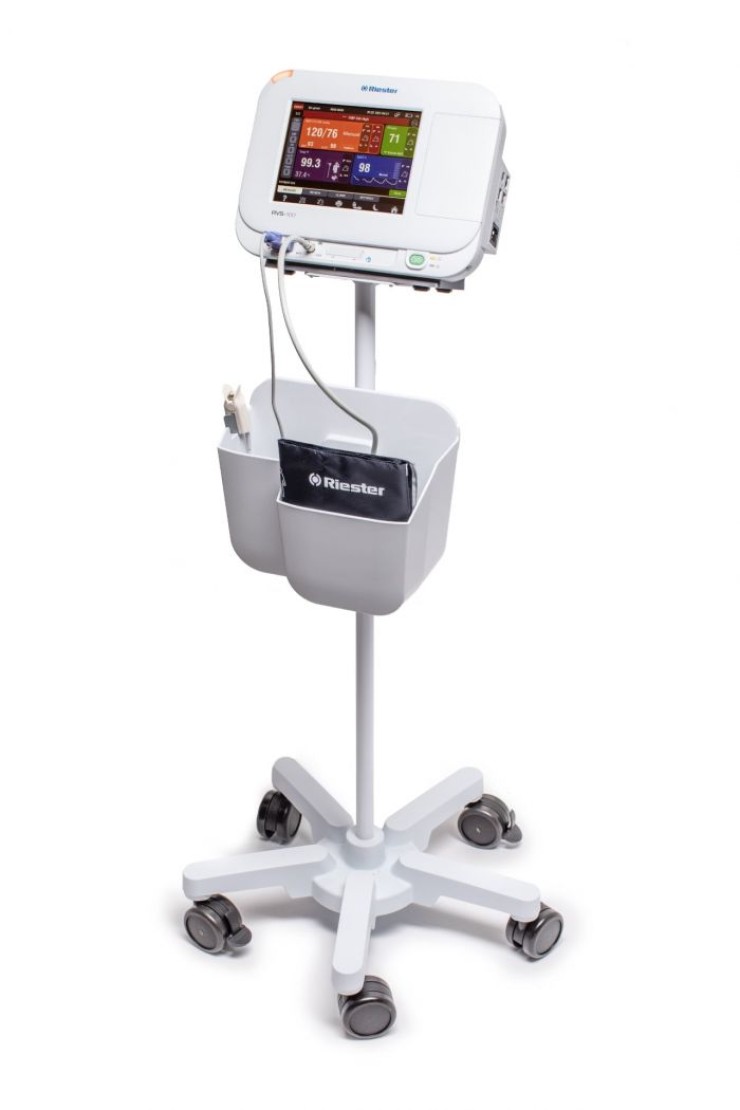

lThe modular design is chosen by the customer around their needs,
starting with the choice between a table/mobile stand or wall mounted, through
to the optional accessories like a printer.
lCan be plugged into the mains or powered off the battery for 17
hours2
lRiester is committed to providing reliable clinical measurements,
including the choice of SpO2: Riester, Nellcor or Masimo
Software
lRVS-100 is programmed with EWS: NEWS, MEWS and 5 customisable
profiles which can be set by the end-user if they have bespoke requirements.
lServe a large patient population with the ability to save up to
1,000 patient records, with up to 5,000 measurements per patient.
lCan be used on all patient types: adult, paediatric and neonate.
lRVS-100 can communicate through a wired or wireless connection to
the hospital’s EMR/EHR, according to the HL7 standard.3
lSoftware languages available: Chinese, Danish, English, French,
German, Italian, Polish, Portuguese, Spanish (Europe) and Traditional Chinese.
Power supply
100 – 240 V AC, 50/60 Hz
Battery
Lithium-Ion battery,
rechargeable, 10.8 V DC, 6,600 mAh.
Charging time to a 100%: 6 hours
Operating time approx. 11 hours (new and fully charged battery at 25°C ambient temperature with connected SpO2,Temp, and NIBP on
AUTO mode (15 minutes interval)
Low battery indicator, Charging battery indicator
Monitor dimensions
303 x 230 x 110 mm (11.93 x 9.05 x 4.33 in)
Monitor weight
3600 g (7.94 lb) inc. temperature module, printer

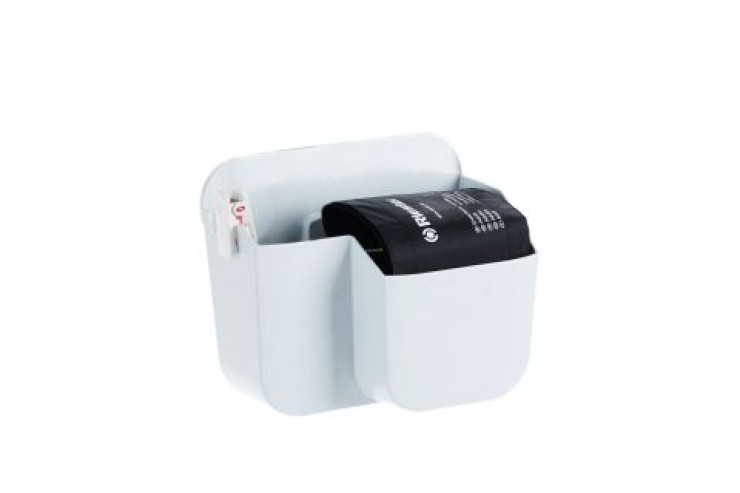

Basket dimensions
270 x 225 x 200mm (10.63 x 8.86 x 7.87 in)
Alarm
Visible LEDs (Yellow, Red, Blue, Green, Orange) Audible Speaker Gives audible alarm, QRS tone Supports Pitch Tone and multi-level volume Alarm tones meet the requirement of IEC 60601-1-8. Alarm Pressure: 45 dB to 85 dB test distance is 1 meter from the tone

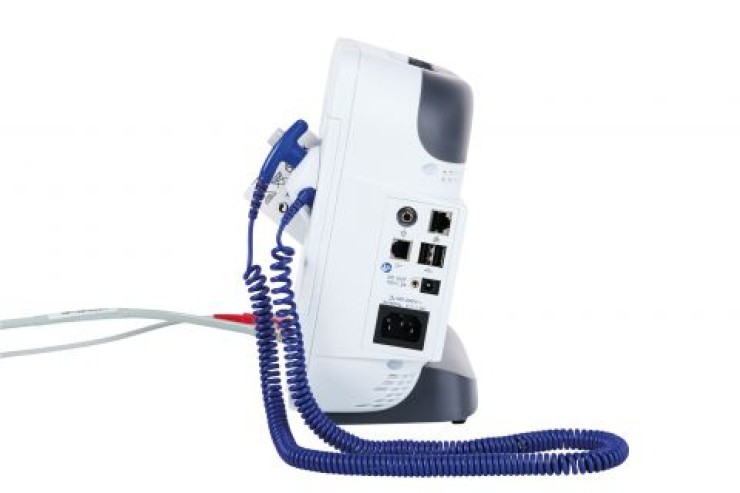

Ports
1 x AC power inlet
1 x standard RJ45 interfaces.100 BASE-TX, IEEE 802.3
4 x USB ports
1 x Equipotential grounding point
1 x RJ11 connector for nurse call
DC out port 15V/1.2 A
