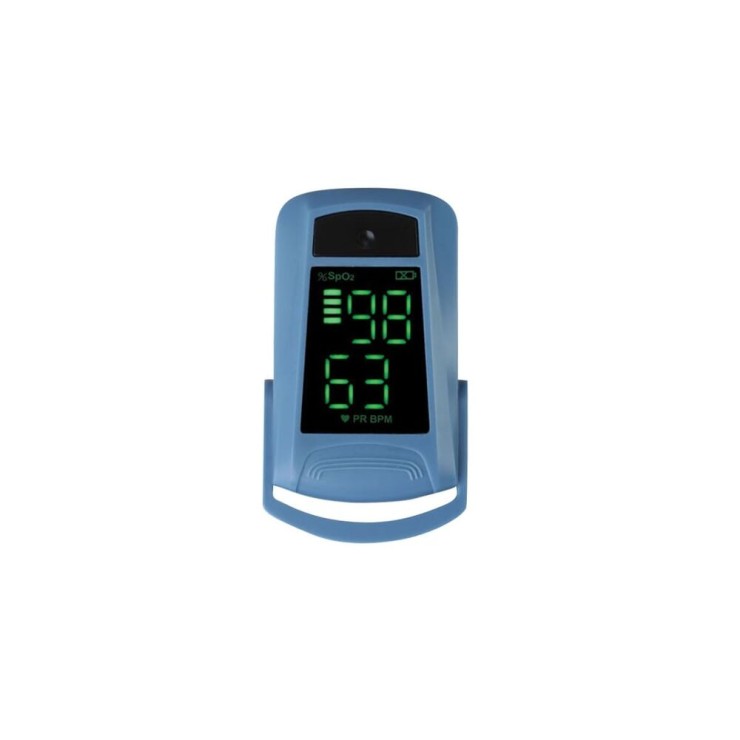

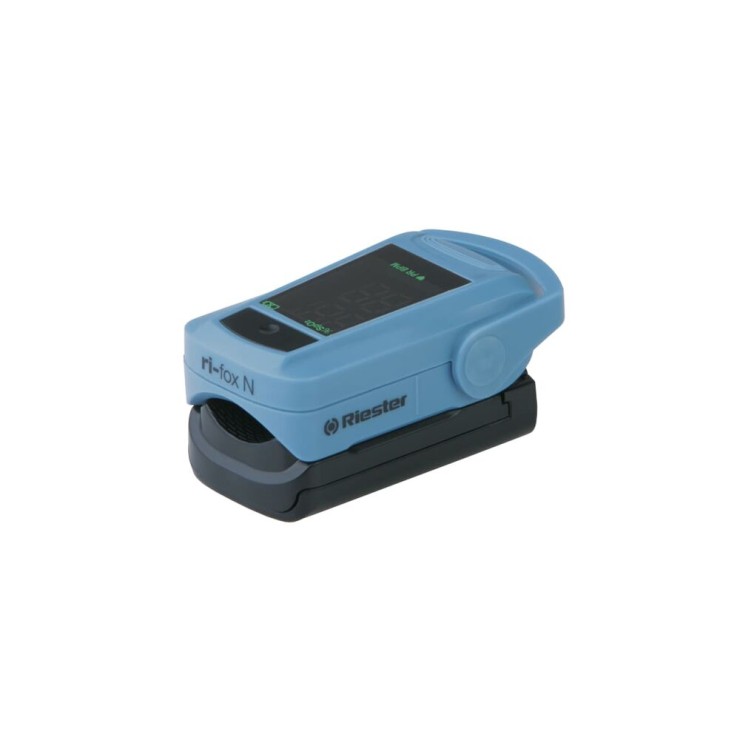

ri-fox N is a pulse oximeter which measures
pulse rate (PR) and oxygen saturation (SpO2) in less than 3 seconds. The pulse

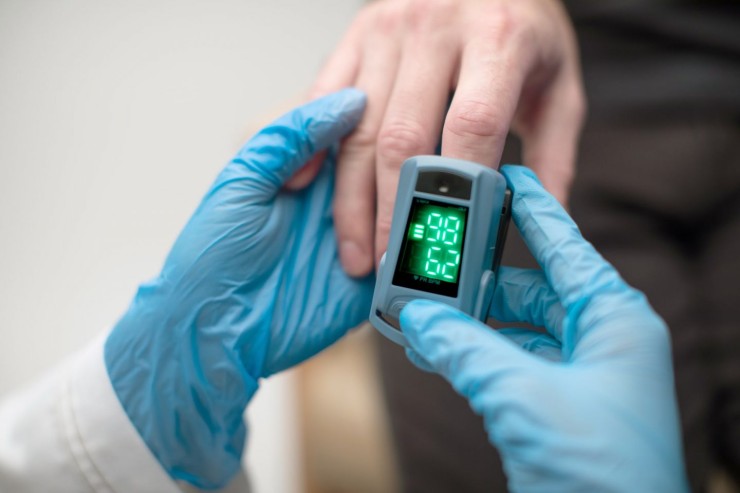

oximeter easily clips onto the patient’s finger, preferably the index finger.
The measurements are easy to read on the LED display screen in both dark and
lit settings. This small, mobile device is suitable for use in hospitals, clinics
as well as long-term care settings or home.
Pulse oximetry
Pulse oximetry is defined as: A test used
to measure the oxygen level (oxygen saturation) of the blood. It is an easy,
painless measure of how well oxygen is being sent to parts of your body furthest
from your heart, such as the arms and legs. A clip-like device called a probe
is placed on a body part, such as a finger. The probe uses light to measure how
much oxygen is in the blood. This information helps the healthcare provider
decide if a person needs extra oxygen.
Features and
benefits
lA small, mobile device with integrated sensor
lSimple and fast measurement by attaching to the finger, preferably
the index finger

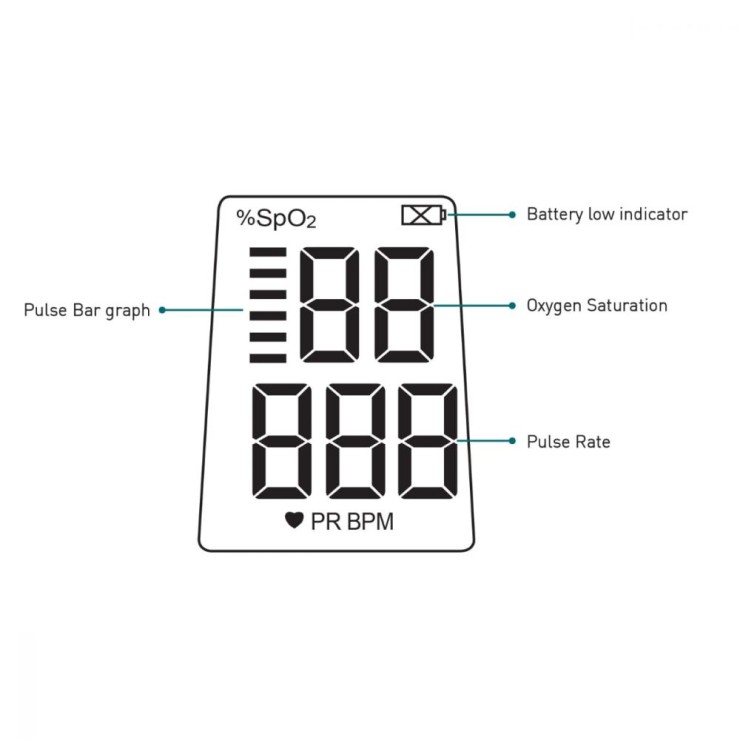

lScreen displays SpO2 and pulse rate measurements
lLED screen is visible in both dark and lit rooms
lThe pulse bar graph on the screen visually indicates pulse rate
lAutomatically switches off after 8 seconds to save battery
lBattery status indicator (top right-hand corner) displays the charge
left in the batteries
lBatteries have a lifetime of approx. 30 hours (in continuous
operation)
lBatteries are simple and quick to change
lStandard AAA-batteries are included
lIncludes a wrist strap
SpO2 measurement range
70% - 99%
SpO2 resolution
1%
SpO2 measurement accuracy
70% - 99%: +/- 3%
< 70% No definition
Pulse rate measurement range
30 – 235 bpm
Pulse rate resolution
1 bpm
Pulse rate measurement accuracy
30 - 100: +/-2bpm
101 - 235: +/-2%
Display
LED
SpO2, pulse rate, pulse signal, visual indicator for low battery
