ri-derma dermatoscope offers physicians and
specialists a reliable method of dermatoscopic screening and early
identification of malignant melanomas. Proven epiluminescence microscopy allows
melanocytic and non-melanocytic structures to be distinguished and enables
precise observation of changes in skin pigmentation.
Features and
benefits
l10-fold magnification of the structure of the skin with focussing,
achromatic lens.

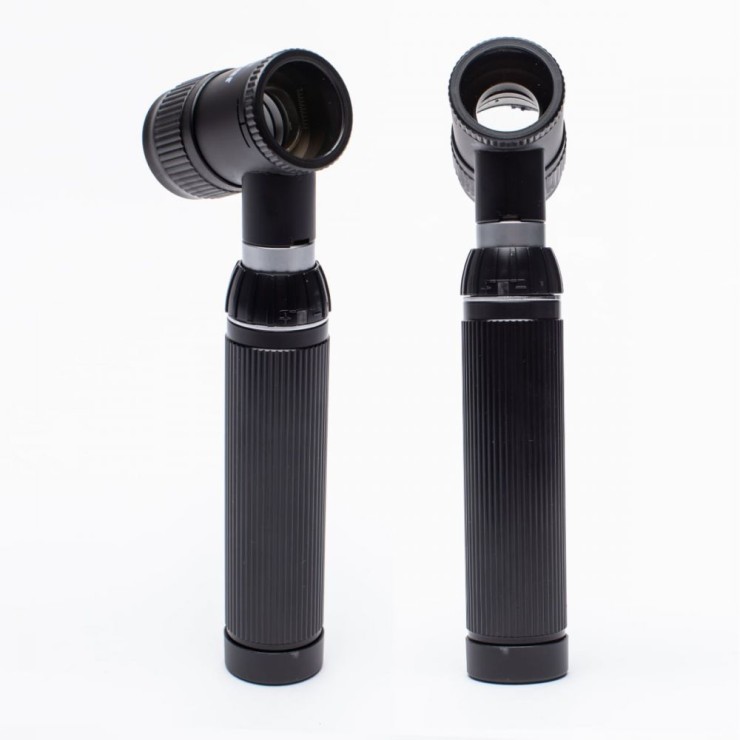

lTwo different skin-friendly and sterilizable contact plates are
available: with scale from 0 – 10mm for exact measurement of pigmented skin
lesions or without scale.
lIllumination of the examination field with 3.5 V LED illumination or
2.5 V xenon illumination resembles natural daylight
lBulbs can be quickly replaced at the base of the instrument head,
and offer a bayonet fitting for quick and secure attachment of the instrument
head to the handle
lStable casing of black chrome-plated metal, dustproof
lDeveloped and manufactured in Germany
weight head

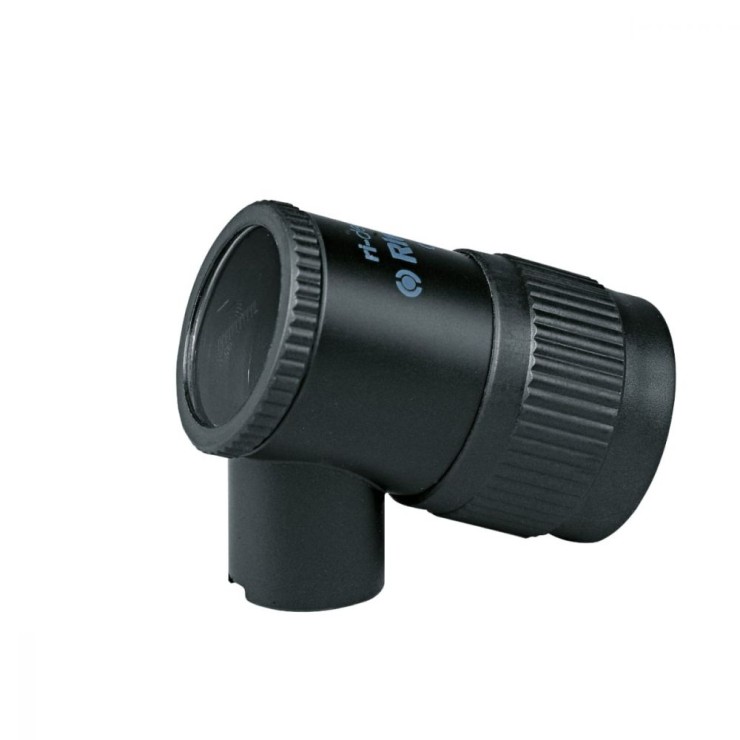

ri-scope® ri-derma dermatoscope head 110g
Technical data of lamp for ri-scope® derma dermatoscope
XL 2.5 V 2.5 V 750 mA, mean life span 15 h
XL 3.5 V 3.5 V 690 mA, mean life span 15 h
LED 2.5 V 2.5 V 280 mA, mean life span up to 50,000 h
LED 3.5 V 3.5 V 280 mA, mean life span up to 50,000 h
Battery
2 Alkaline AA / C 1.5V batteries. 1 Li-Ionen accu for C-handle
