A modular diagnostic system offering the optional modules which can measure blood pressure (NIBP), temperature, and with

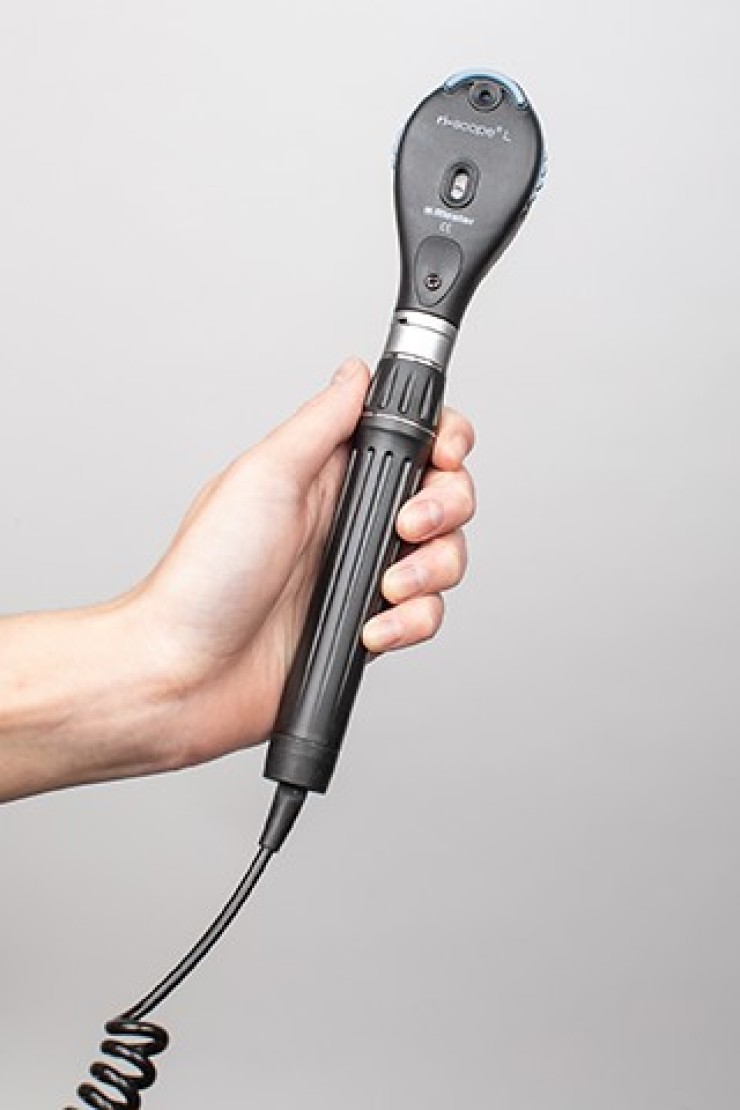

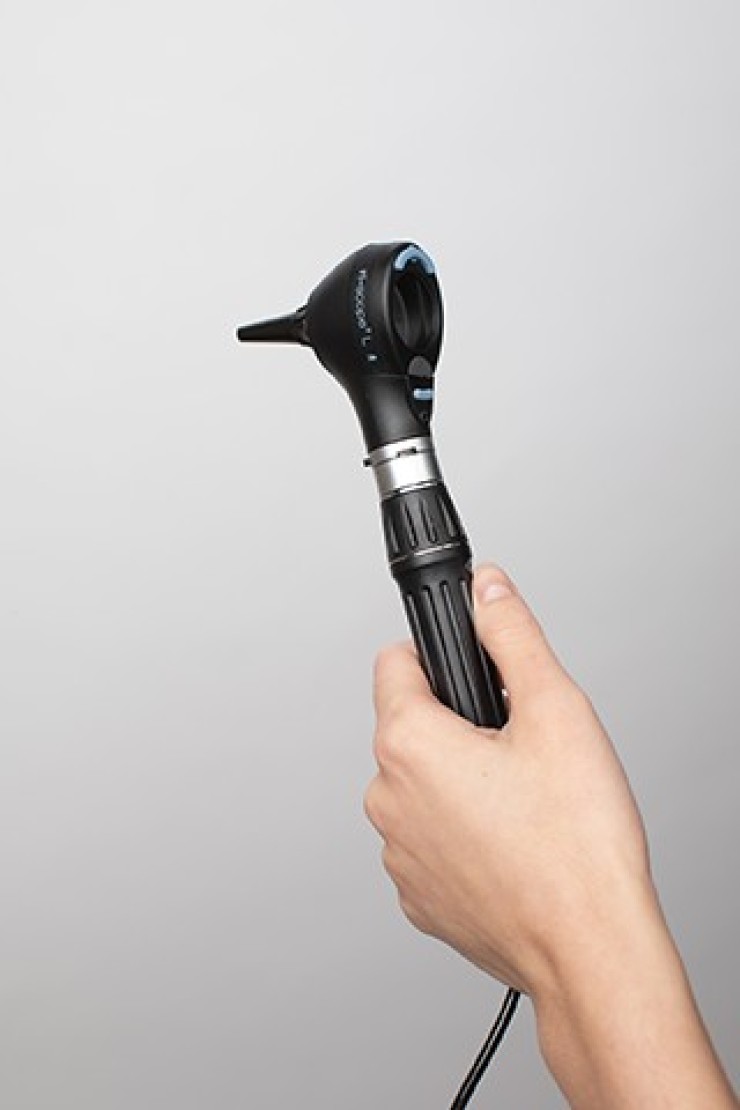

centralised electricity power supply it can support up to 5 instrument-handles with choice of heads; ophthalmoscope, otoscope, dermatoscope, retinoscope, tongue blade holder or nasal speculum. The flexible, modular design is available as a mobile base, wall design or rail design, offering many configurations to suit the needs of hospitals, medical practices and clinics. ri-former® diagnostic station provides the healthcare professional (HCP) with the ability to assess their patient’s eyes, ears, nose, tongue and skin making it suitable for use across ENT and Dermatology. Design options: ri-former is available in the following design options: • Rail design is designed to attach to a rail, either horizontally or vertically. It comes with 2 handles and ri-spec® ear specula dispenser. • Mobile base is made of fibreglass and a chrome plated pole, which is height adjustable (105 – 130 cm /41.3 – 51.2 in), is easy to move due to low friction, anti-static, lockable castors. Diameter (54 cm / 21.3 in). It comes with 2 handles and ri-spec ear specula dispenser. • Wall design is designed to be attached to the wall. It comes with a choice of 1 or 2 handles and includes a wall mounting plate, plugs and screws. Optional thermometry modules: • RPT-100 (Filac 3000) predictive probe thermometer • ri-thermo® N infrared tympanic thermometer Optional blood pressure modules: • Big ben® aneroid sphygmomanometer (sphyg) • ri-medic automated and manual clinical-grade blood pressure monitor Diagnostic handles: Centralised power supply supports up to 3 diagnostic handles which are ergonomically designed with rheotronic® which provide continuously adjustable brightness as well as manual switching on and off. The diagnostic handles are available with a choice of Riester ri-scope® L and EliteVue instrument heads with a choice of LED or Xenon bulbs: • Otoscopes • Ophthalmoscopes • Retinoscopes • Dermatoscopes • Tongue Blade Holders • Nasal Speculums • Bent Arm Illuminators Accessories: • ri-spec integrated ear specula dispenser for the otoscope and nasal specula has 5 tubes for 5 different sizes of specula, dispenses a new specula for each examination and is easy to re-fill and disinfect.
• Extension module, 1 handle
Features and Benefits
• Disposable ear specula
Dimensions
Diagnostic Station: 200 x 180.5 x 75 mm (800 g)
Extension Module: 200 x 100 x 75 mm (500 g)
Power Supply
Input: 100 V-240 V AC / 50-60 Hz / 0,6 A
Output: 5 V DC / 3 A / 15 W
Diagnostic Station
Input: 5 V DC / 3 A / 15 W
Output 1: 1 x 3.5 V dc / 700 mA
Output 2: 2 x 5 V dc / 2 x 1,15 A
Extension Module
Input: 5 V DC / 3 A / 15 W
Output 1: 1 x 3,5 V dc / 700 mA
Output 2: 1 x 5 V dc / 1 x 1,15 A
Classification
Application part type B
Swith-on time
ON: 1 Min OFF: 5 Min
Operating conditions
0° C to + 40° C,10% up to 85 % relative humidity
Storage and transport conditions
-5° C to + 50° C, 10% up to 85 % relative humidity
