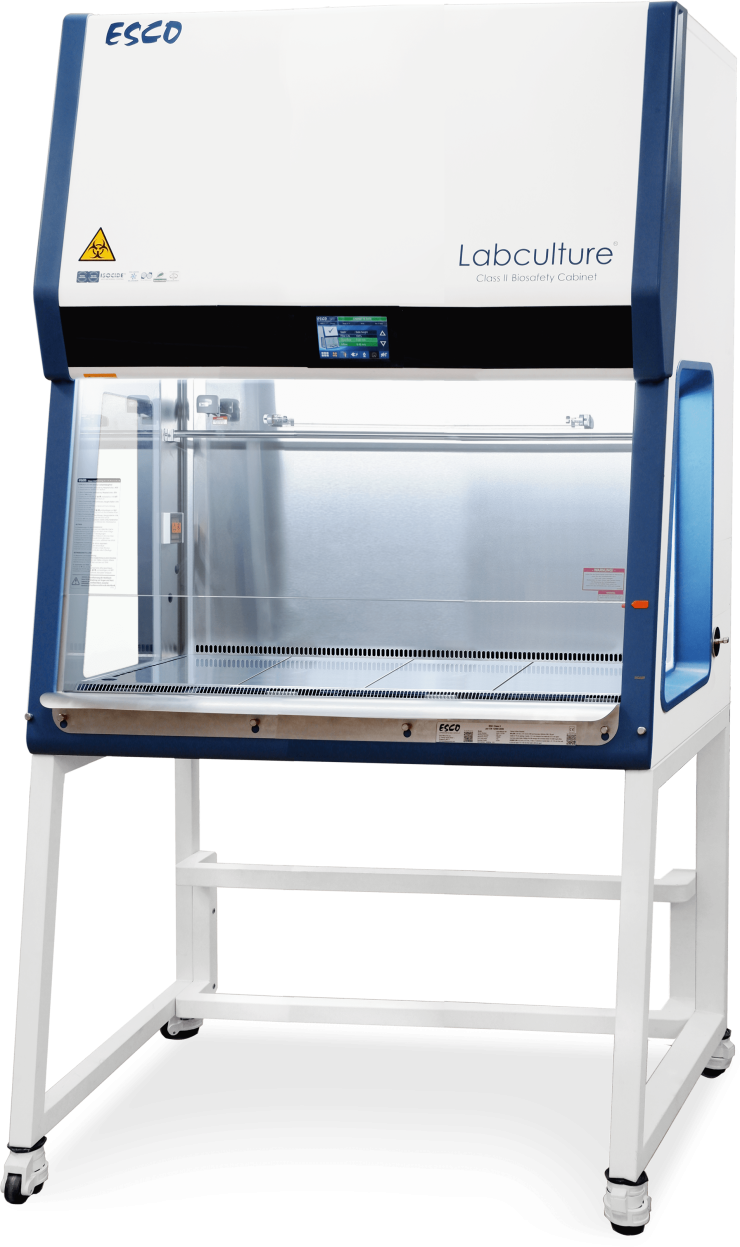

Labculture® Plus G4 Class II Biological Safety Cabinet
Specifications:
• 200 mm (8”) sash opening
• Dimmable LED lighting system
• Centurion touchscreen controller
• Tiltable sash for easy glass cleaning
• Standby height that activates standby mode sustaining ISO Class 3 work zone as the fan runs at half speed
• USB port to relay operational parameters to Building Management System (BMS)
• Remote Modbus
• Default cable port
• Optional 21 CFR Compliance
• Available in two models:
S- Series: Single-piece work tray, stainless steel sidewalls
E-Series: Multi-piece work tray, glass sidewalls
• Motorized window
• Equipped with DC ECM blower for up to 70% energy savings
• Low power consumption
• Available width sizes: 3 ft, 4 ft, 5 ft, and 6 ft
Centurion Touchscreen Controller
Intuitive, comprehensive, and easy-to-understand; Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram; Defined details of alarm types with clear instructions for proper intervention; Centered and angled down for easy reach & viewing; Selectable Quickstart mode for fast operation
Dimmable LED
Adjustable work zone brightness; Ideal light intensity of 1000 lux; Saves energy and optimizes work comfort
Ergonomic Features
200 mm (8") sash opening; Frameless, shatterproof, and UV-absorbing tempered glass; Motorized window; Aerosol tight window seal
Tiltable Sash
For easy cleaning of the inner sash glass
Tray support beams and holder
Support beams for less vibration and holder for easy drain pan cleaning
USB Port and Remote Modbus
USB port to access cabinet data log and BMS connectivity; Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
Cabinet Construction
S-Series:Stainless steel side walls with side capture zones and negative pressure to optimize containment; Single-piece work tray, spill retaining and easy to clean; E-Series:Tempered Glass Side walls - increases visibility and prevents the operator from experiencing a "boxed-in" feeling; Multi-piece work tray, autoclavable
Green Product
Equipped with energy-efficient Dual DC ECM that allows up to 70% energy savings vs AC motor; Extremely low energy consumption; Standby mode allows reduced power consumption
ULPA Filter
10x filtration efficiency compared to the HEPA filter; Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5; Same 10 years filter life and replacement cost as HEPA filters; *99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA; *>99.999% at MPPS, H14 as per EN 1822 EU
Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure
