The EliteVue Macro Otoscope is our top of the line, premium otoscope option. The otoscope has 5x magnification and a wheel to adjust focal depth, a specula ejection feature and your choice of battery power. Charging and battery options include, C cell alkaline batteries, a USB plug in charger with Lithium Ion batteries or a desk top charging base for use with Lithium Ion batteries.
The C cell size handles are sturdy and
robust. The collar on the handle has a +/- to turn the otoscope on, as well as
brighten or dim to your liking. The otoscope also comes equipped with an auto
shut off feature after 180 seconds to preserve battery and bulb life. The two
options for illumination are LED or Xenon.
EliteVue offers a 5x magnification and a field diameter of 11 mm at a distance of about 20 mm. Twice the field of view provides a complete view of the auditory canal and tympanic membrane and eliminates the need for panning the otoscope, supporting a more efficient diagnosis.

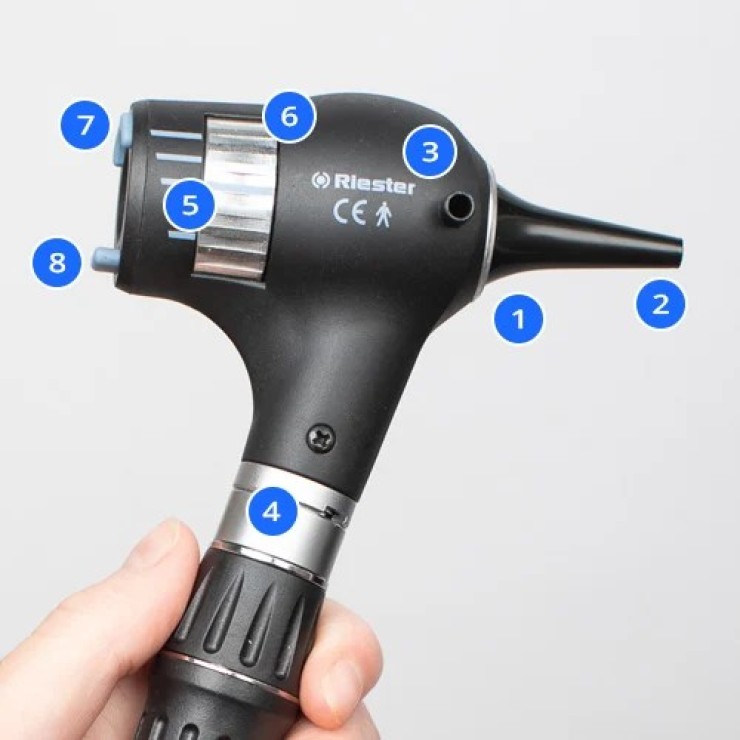

Features and
benefits
lFeatures 5x magnification and
manual focus wheel
lOffers 66% greater
magnification when compared to standard otoscopes
lShows twice the field of view
lSpecula ejection feature to
reduce cross contamination
lInnovative LED illumination or
Xenon illumination
lHigh performance fiber optic
lighting
lSuitable for throat
illumination
lVarious options for battery
power
lTwo year warranty

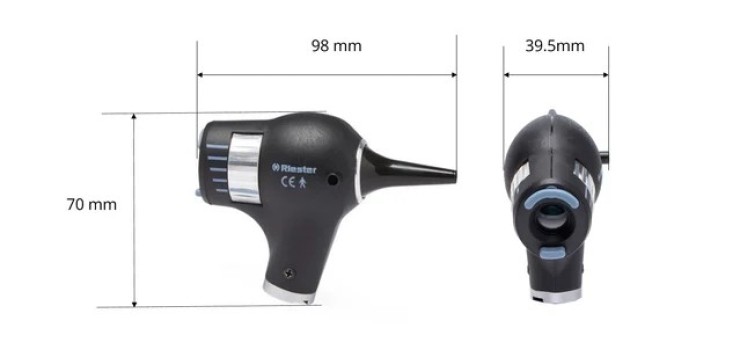

Dimensions
98mm 70 mm x 39.5mm
5 x magnification
The lens system offers 5 x magnification and a field of view of 11 mm in diameter at a distance of about 20mm.
The lamp for EliteVue XL
XL 2.5 V, 2.5 V, 750 mA, average life span 15 h
XL 3.5 V, 3.5 V, 750 mA, average life span 15 h
The lamp for EliteVue LED
LED 2.5 V, 2.5 V, 280 mA, average life span up to 50,000 h
LED 3.5 V, 2.5 V, 280 mA, average life span up to 50,000 h
