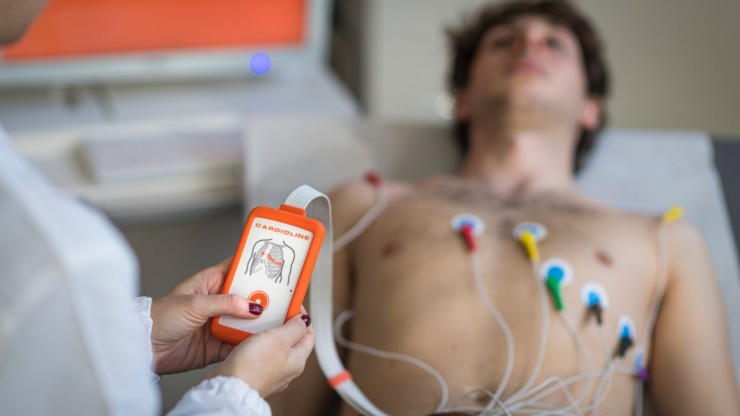

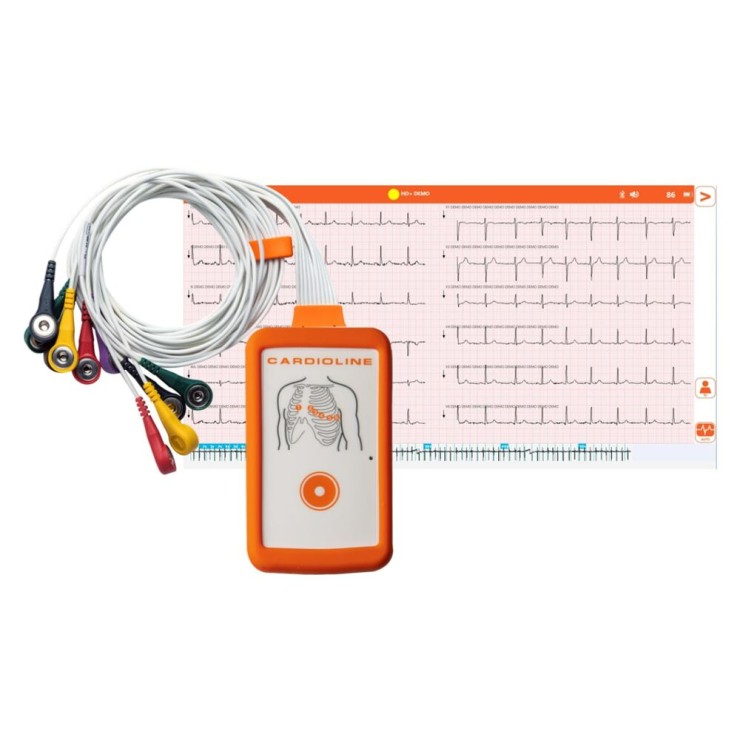

The Cardioline touchECG System HD+12 is a
fully diagnostic 12 lead ECG acquisition unit, with a 10-wire patient cable. It
is lightweight, wireless and rugged in design. Bluetooth integration with

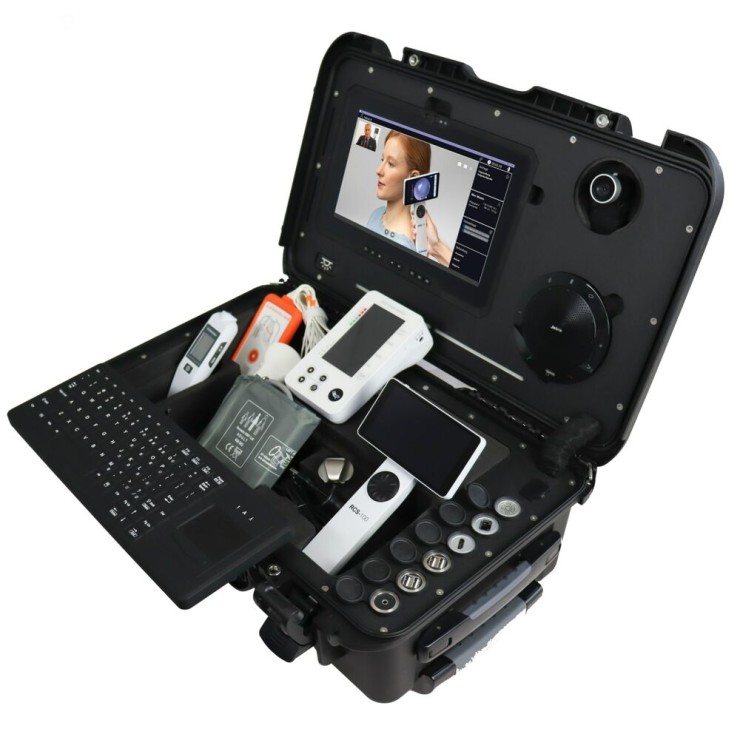

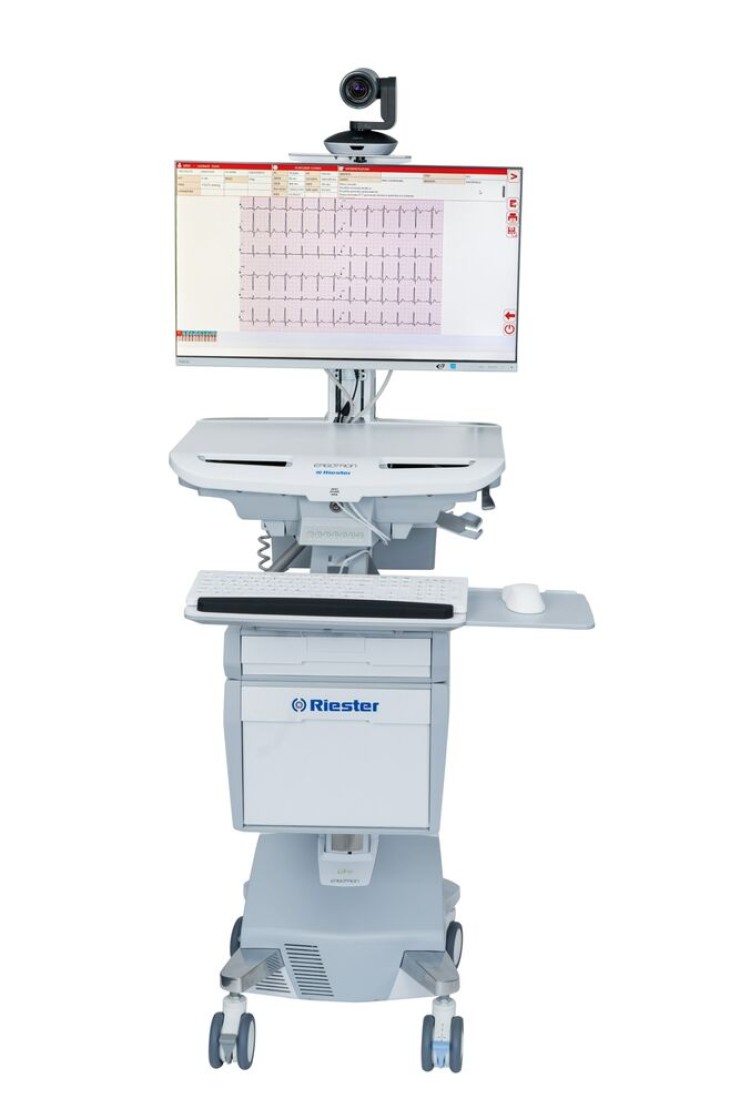

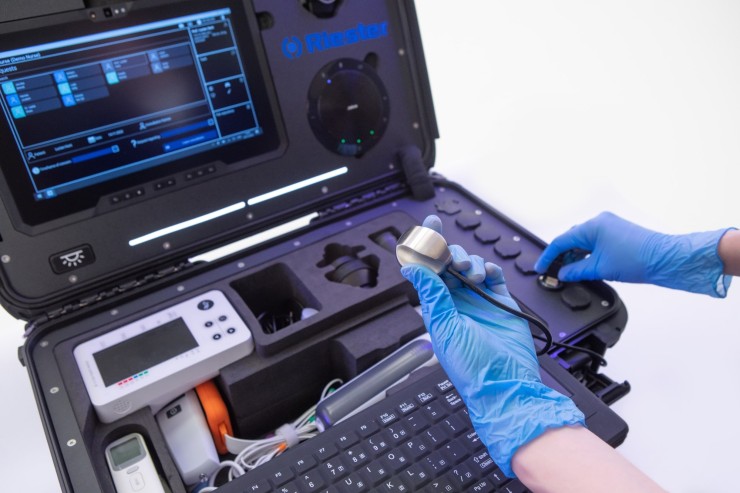

Riester telemedicine point of care stations (Cart and Case) makes ECG
acquisition possible in clinic or on the go through integration into the
DocsInClouds and AMD telemedicine software.
Application for
use with the Riester telemedicine point of care stations
Intended use
The device function consists of acquiring
and wirelessly transmitting ECG signal for displaying, processing, and
presenting ECG signal for the purpose of supporting the diagnose of patient
conditions.
HD+ is a wireless acquisition device, to be
primarily used as common ECG front-end for PC/tablet (Windows/MAC OS/other)
standard platforms, both for Resting ECG and Stress ECG applications. The
device implements the wireless communication via Bluetooth wireless technology.
Connected with a receiver via Bluetooth, HD+ sends the data to the host without
making any analysis or filtering.
The ECG is transmitted verbatim to the
receiving system, without LSB or sampling adjustment. HD+ is not intended to
control or analyse heart function and/or to diagnose the patient's health
status. The analysis program on the host is a separate product.
The results of the analysis must always be
validated by qualified, trained medical personnel.
lHD+ uses standard 12 lead ECG cable to acquire the physiological
signal to the patient.
lHD+ allows the patient to be ambulatory.
lHD+ is intended to be used on adult and all paediatric patients.
lHD+ is intended for use in a medical environment (hospitals, clinics
and medical practices), in homecare or in an emergency environment
(ambulances).
lHD+ is intended for use by qualified, trained nurses and physicians.
Features of
Cardioline touchECG System HD+12
lFully diagnostic 12 lead ECG acquisition unit, with 10 wire patient
cable
lSeamlessly integrated into the Docsinclouds Telemedicine software
for or live remote in vitro use to capture ECG data for sharing and captured in
diagnostic reports.
lLightweight, wireless and robust device, comfortable for patient and
ease of use for technician
lHigh signal quality with low noise. Exceeds the most stringent
standards for ECG acquisition (AAMI, AHA)
lExtreme portability and ease of use thanks to single command button,
with water and dust protection
l(IP42 with silicon shell) and drop proof (1 meter, all angles)
lLow power consumption technology allows for more than 10 hours of
continuous usage (greater than 500 ECG’s)
ECG leads
12-leads (I, II, III, aVR-L-F, V1-6)
Bandwidth
300 Hz (@1000 m/s)
Pacemaker detection
Hardware detection coupled with digital convolution filter
